Detail display
Manufacturer of high-quality complete craft beer brewing equipment
Brite & Serving Tanks
Carbonation Stone
Horizontal Lagering Tank
Inside Of Tank
Liquid Level
Sample Valve
Pressure Gauge
Product Brief Introduction

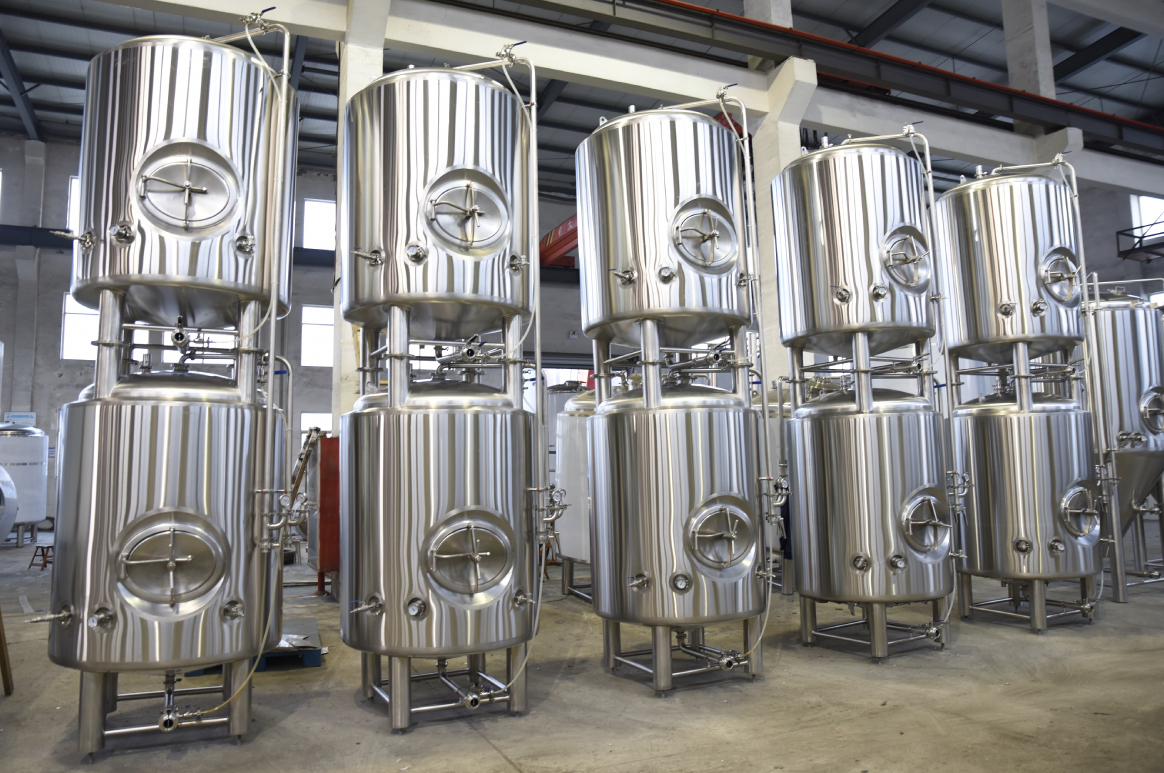

Our industry-leading brite tanks are available ranging in size from 2 BBL to 300 BBL.
Advantage
Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery' s space and height restrictions. Tank design pressure is 30 PSI
Standard product features
Brite Beer Tank w/ 20% head space. | 4 legs with levelling foot pads. |
Design pressure 30-45psi or 2-3bar. | CIP arm and spray ball. |
Interior shell: SUS304, thickness 3mm. | Vacuum relief at 2bar. |
Exterior shell: SUS304, thickness 2mm. | Pressure relief valve at 30-45psi as standard. |
Interior and exterior finish bright polish to 2B, hygienic surface. | Sanitary pressure gauge. |
Options of vertical or horizontal orientation. | Perlick style sample valve. |
Dual ports for racking and discharge/CIP with butterfly valve and fittings. | Carbonation/sinter stone with one way check valve. |
Side or Top man way door, shadowless. | Quick connect gas valve. |
Dimple glycol cooling jackets with glycol inlets and outlets. | Lifting Lugs. |
Polyurethane foam insulation, thickness 80mm/>3” on side and bottom. | Thermowell. |
Fully welded exterior shell. |
Options
Additional blow off pipework.
Dry hopping port
Larger drain ports.
Upgrade drain port size
Racking arm
