Detail display

Product Brief Introduction

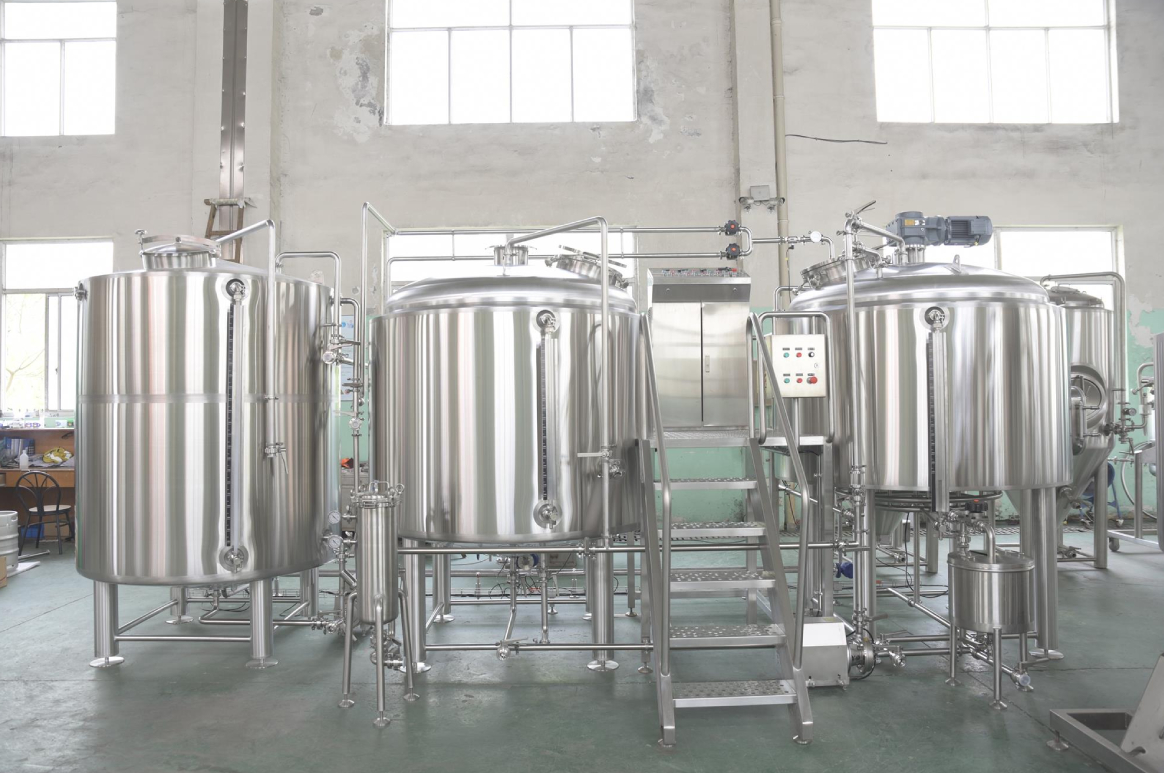

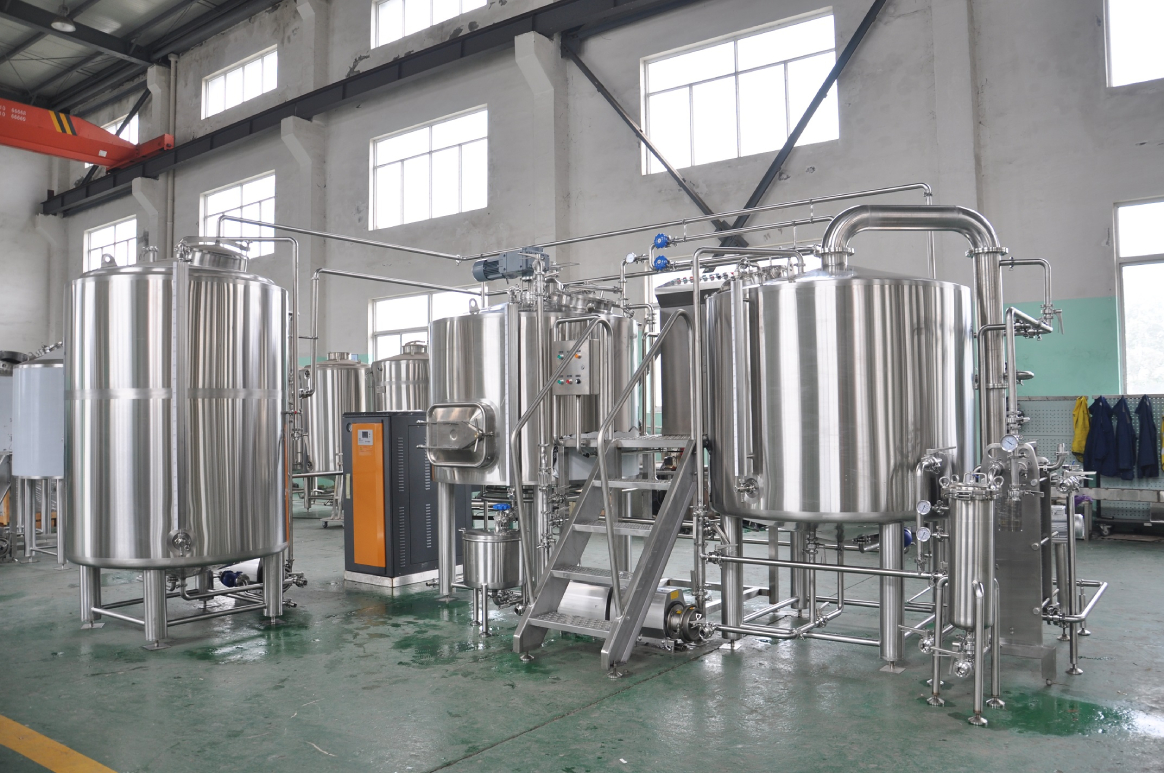

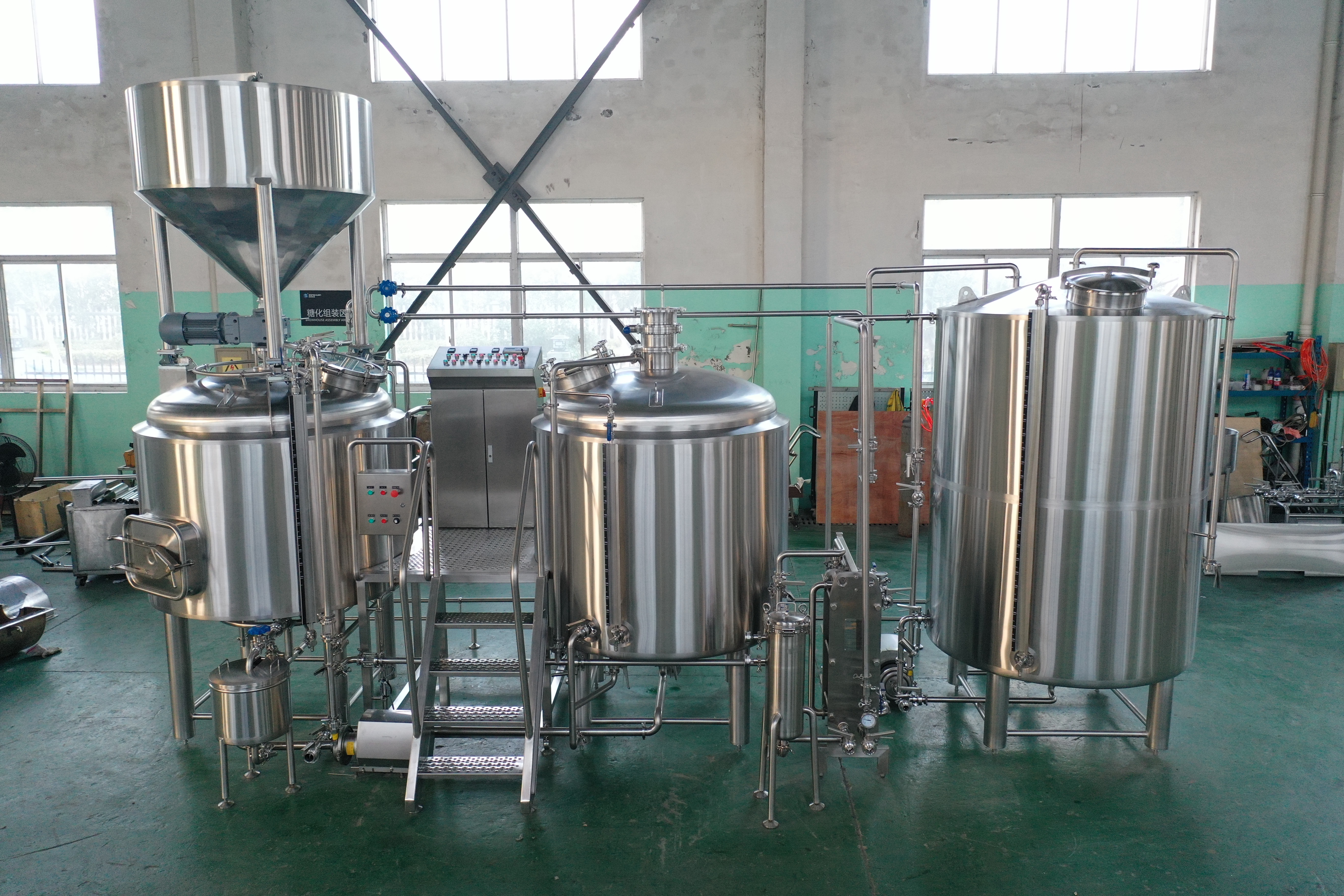

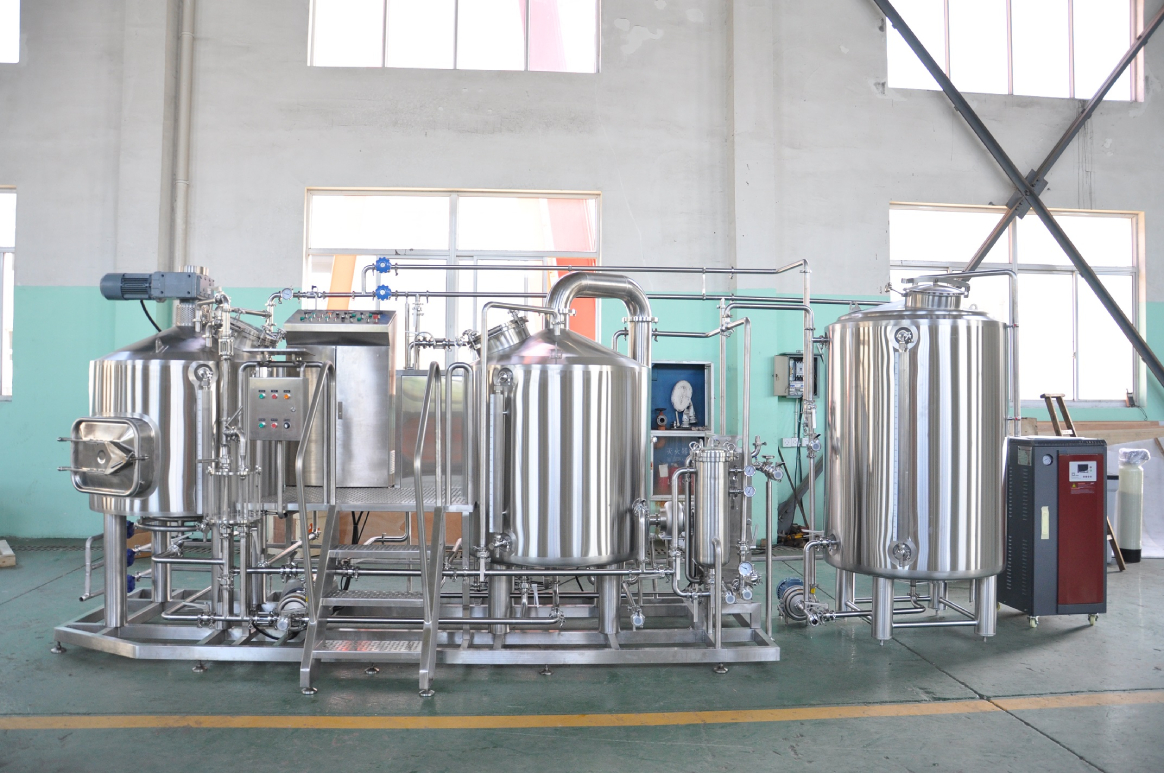

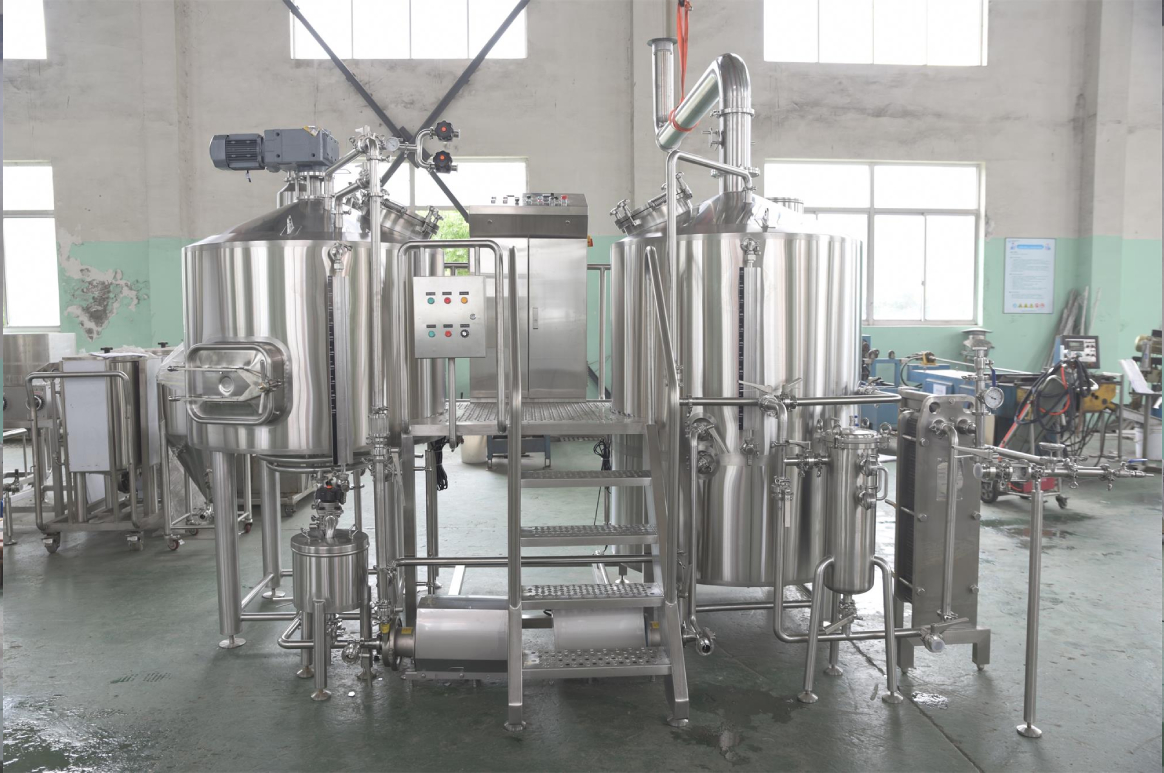

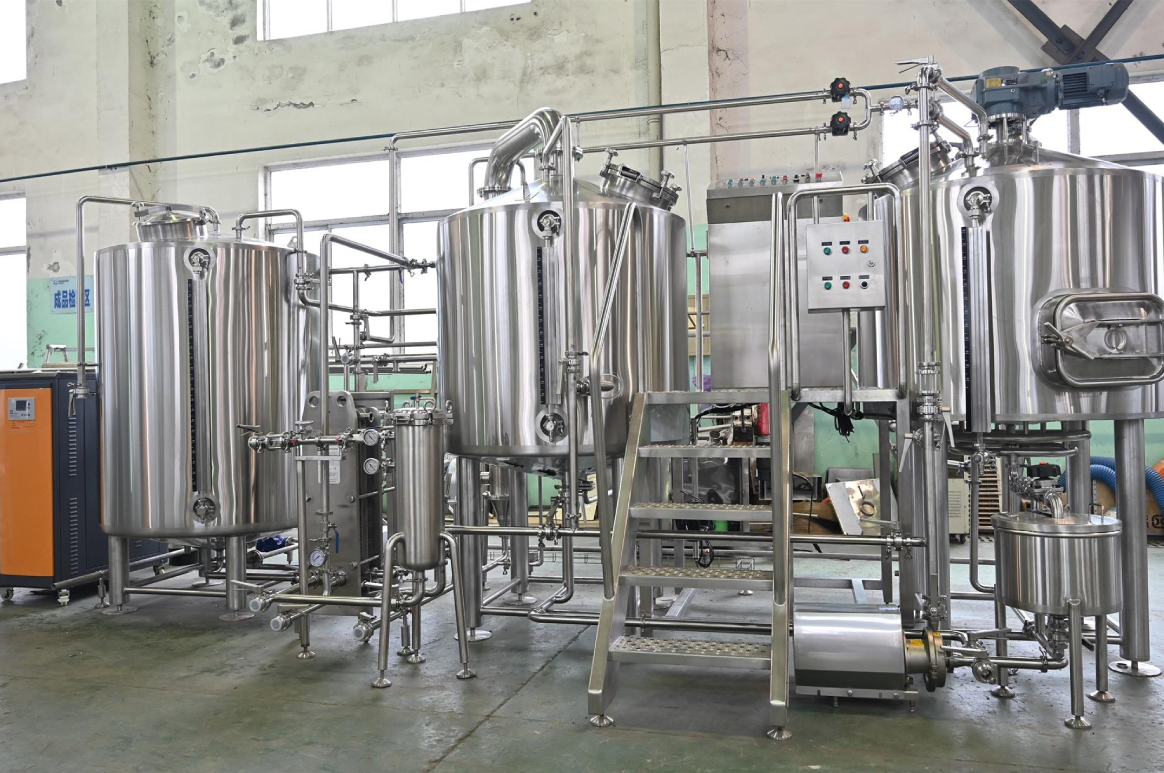

2-vessel brewhouses are the most purchased configuration consisting of a combination mash and lauter tun and a kettle and whirlpool vessel. From there you can explore a 3-vessel configuration by either separating the mash and lauter or kettle and whirlpool to a dedicated vessel.

Advantage

● Complete, new, and high quality configuration.
● Auxiliary systems selection of leading and imported brand.
● The auxiliary systems are long life, high-performance, high-quality, low-loss.
● Certified stainless steel(304,316) material for all tanks.
● Electrical accessories reach UL, cUL, CE, PED, export standards.
● Supporting auxiliary system voltage and frequency match your standard exactly.

Standard Product Features

Mash/Lauter tun	Mash lauter tun w/ 30% head space
	Top glass manway with logo options.
	Hot/cold liquor blending pre grist hydrator.
	Motorized VFD reversible rakes & grain plow to aid with grain out.
	Side steam jacket with push button heating control.
	Internal LED lighting.
	Sparge ring and vorlauf assembly.
	Vorlauf sight glass.
	False bottom – wedge wire. (3mm)
	Multiple wort drain ports.
	Thermo-well and PT100 Thermocouple.
	Multiple CIP under flush ports.
	20L SUS304 closed wort grant option.
	CIP spray balls – 360⁰ coverage.
	SUS304 Lifting Lugs.
	4 SUS304 legs with levelling foot pads
Kettle/whirpool tun	Kettle/whirlpool combined vessel w/ 40% head space.
	Top glass manway with logo options.
	Bottom, side and top steam jackets with push button controls.
	Internal LED lighting.
	Tangential wort inlet.
	1.5″ side wort drain, behind trub baffle.
	2″ drain outlet.
	CIP spray balls – 360⁰ coverage.
	SUS304 Lifting Lugs.
	4 SUS304 legs with levelling foot pads.
Pump	VFD sanitary centrifugal pump.
	Made of 100% non-reactive, sanitary-finished, food-grade SUS304.
	Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washers, hop cannons and lenticular filtration units.
	Standard flow rate of 10hL p/hr – 200hL p/hr.
	Standard lift of 18M – 24M.
Brewhouse Components
Platform	SUS304 working platform, with stairs and safety railing.
2-Stage Heat Exchanger	Cold water and glycol stages for expedited knock out.
	High efficiency knock down.
	Easy cleaning and disassembly.
	Back flush capabilities.
	Set of spare plate gaskets included.
0² Oxygenation Assembly	Sanitary sinter stone.
	SUS304 Ball valve & Gas quick connect.
	Allows to connect to 0² for wort oxygenation.
Valves and Piping	SUS304 Sanitary fittings/valves/piping.
Brewhouse Electrical Control System	Brewhouse, HLT, CLT & GT central control system.
	Controls for all VDF pumps.
	Temp gauges and switches to monitor steam heating.

Option: Heating Method

We offer all of the main heating methods which are:

● Electrical

We recommend electrical heating for brewhouses up to 840L/7BBL as above this size you start drawing serious power. It would be better to consider other options, but we will happily scale to larger brewhouses and HLTs depending on your needs.

● Direct-Fire

We recommend direct-fire heating for brewhouses from 600L/5BBL as this gives enough area for the firebox under the vessels to work efficiently.

● Steam

We recommend this option for all size breweries if you are able to fit the costs in your budget and the equipment in your space. You get the best heating efficiencies and are able to utilize the steam in other areas of the brewery.
