Product Brief Introduction

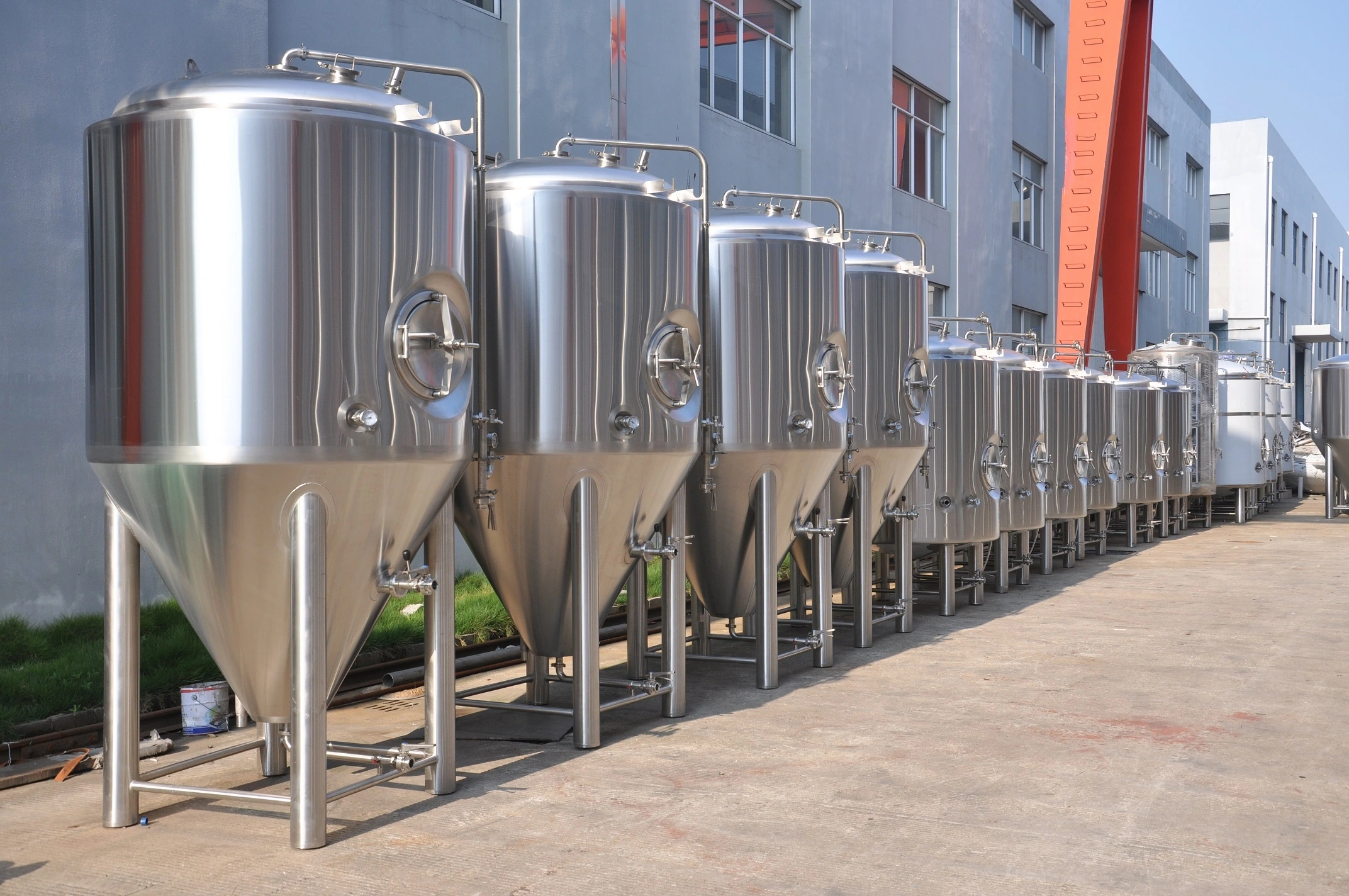

Our uni-tank fermenters are designed specifically to meet unique and diverse brewing requirements. Whether small or large volume, our knowledge of the brewing process, customization capabilities and quality craftsmanship combine to satisfy the needs of the most discerning and demanding brewers. Our industry-leading uni-tank fermenters are available ranging in size from 2 BBL to 300 BBL.
Advantage
Certified stainless steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All tanks and jackets inspected and pressure tested to 2 times operating pressure. All tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery' s space and height restrictions. Tank design pressure is 30 PSI
Standard product features
Fermentation vessel w/ 25% head space. | CIP arm and spray ball. |
Design pressure 30psi or 2bar. | Rotating racking arm. |
Interior shell: SUS304, thickness 3mm. | Vacuum relief at 2bar. |
Exterior shell: SUS304, thickness 2mm. | Pressure relief valve at 30psi as standard. |
Interior and exterior finish bright polish to 2B, hygienic surface. | Sanitary pressure gauge. |
60° conical cone bottom. | Perlick style sample valve. |
Racking port and discharge port with butterfly valve and fittings. | Tank complete with fittings, valves, and all parts. |
Side or Top man way door, shadowless. | Lifting Lugs. |
Dimple glycol cooling jackets with glycol inlets and outlets. | Thermowell. |
Polyurethane foam insulation, thickness 80mm/>3” on side and bottom. | P100 temperature sensor. |
Fully welded exterior shell. | 24V DC liquid solenoid valve. |
4 legs with levelling foot pads. |
Options
Additional blow off pipework.
Carbonation stone.
Dry hopping port
Larger drain ports.
Tangential inlets.
Glycol pipework.
